| Nominal flow rating l/min (gpm) |
30 l/min (50l/min) 7.9 US gpm (13.2 Us gpm) |
| Max. operating pressure bar (psi) |
315 bar (4600 psi) |
| Max. back pressure bar (psi) |
210 bar (3045 psi) |
| Internal leakage (min.) A(B) to T at 100 bar(1450 psi) fluid and valve at 40°C |
30cm3/min (0.85in3/min) |
| Fluid temperature with NBR (FPM) from -20°C to 80°C |
(from -20°C to 100°C) |
| Viscosity range, mm2/s (cSt) |
from 15 to 75 mm2/s |
| Permisable degree of fluid contamination 20/18/15 - ISO 4406 |
NAS 1683 - class 9 |
| Ambient temperature |
from -40°C to 60°C |
| Tighthening torque of tie rods (strength class DIN 8.8) |
13 - 20 Nm |
|
 |

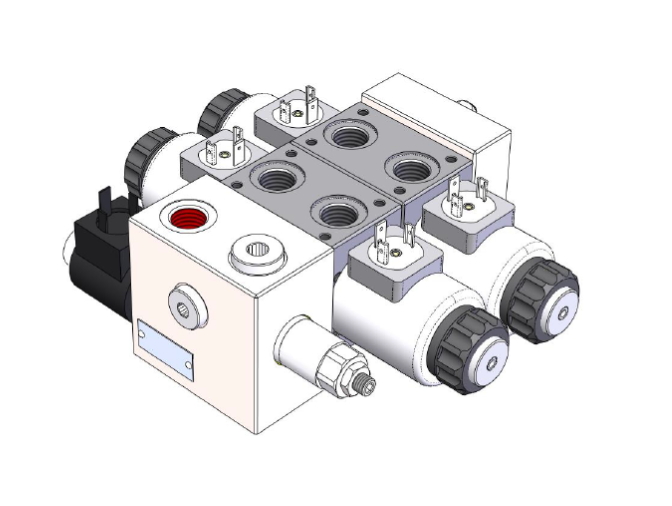

Description: Simple compact and heavy duty design 1 to 10 sections. It has steel inlet and outlet sections, available in several configurations and is available in parallel and series circuits.
