Technical parameters:
Nominal flow rating 45 l/min [12 US gpm]
Max operation pressure 315 bar [46000 psi]
Back pressure (max outlet port T) 25 bar [360 psi]
Internal leakage (max) A(B) to T 5 cm3/mm [0.30 in3/min
Fluid mineral based oil
Fluid temperature (with NBR seals) -20 C to 80 C [ -4 F to 176 F]
Viscosity 15 to 75 mm2/s [15 to 75 cSt]
Max contamination level -/19/16 - ISO NAS 1683 -class 10
Ambient temperature -40 C to 60 C [ -40 F to 140 F]
Tie rods torque (wrench 13) 30Nm [22 lbft]

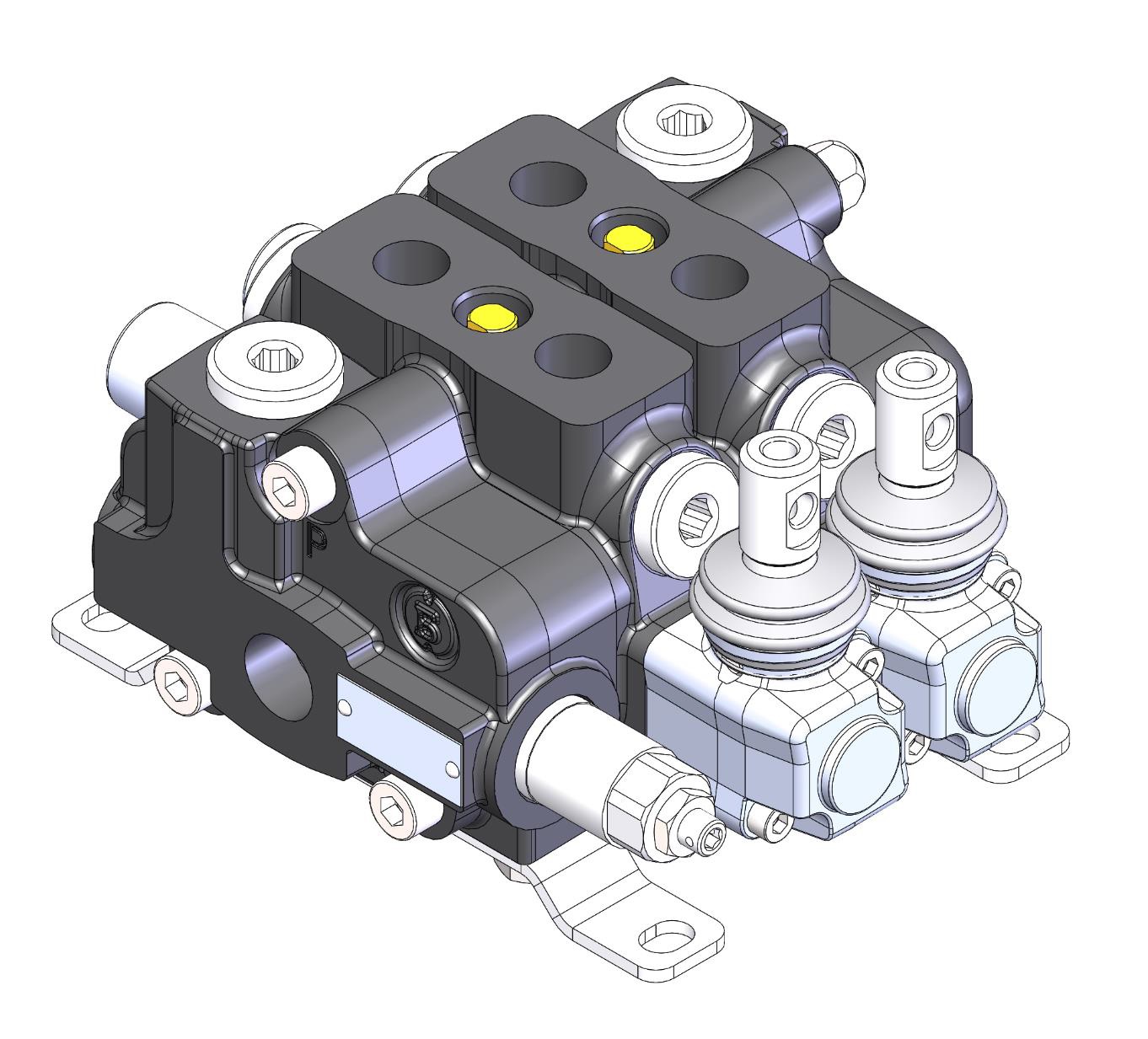

Description: Simple compact and heavy duty design 1 to 12 sections for open and closed hydraulic systems. - Fitted with main relief valve and load check valve on each section - Available in parallel, tandem, and series circuit - Optional power beyond port - Wide variety of port valves - Available manual, pneumatic, electro pneumatic, hydraulic, electro hydraulic, solenoid, and cable control kits. - Interchangeable 16 mm spools.
