Technical parameters:
Flow rate, l/min (gpm) 80 (21)
Operating pressure, bar (psi) 250 (3600)
Internal leakage (max)P- A(B) to T at 100 bar(1450 psi) fluid and valve at 40°C 3 cm3/min (0.18 in3/min)
Hydraulic fluid mineral oil based
Fluid temperature with NBR (FPM) from -20°C to 80°C (from -20°C to 100°C)
Viscosity range, mm2/s (cSt) from 15 to 75 (from15 to 75)
Max. contamination level -/19/16 - ISO 4406 NAS 1683 - class 10
Ambient temperature for working conditions from -40°C to 60°C

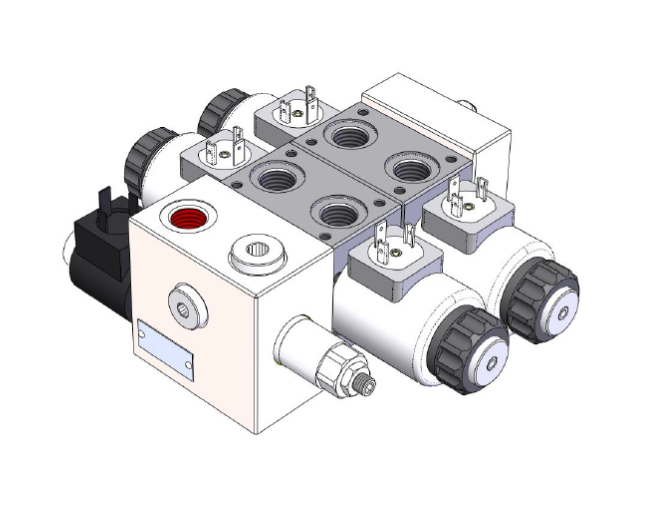

Description: Specially designed monoblock valve for front loaders applications, fitted with main pressure relief valve and load check valve on every working section.
